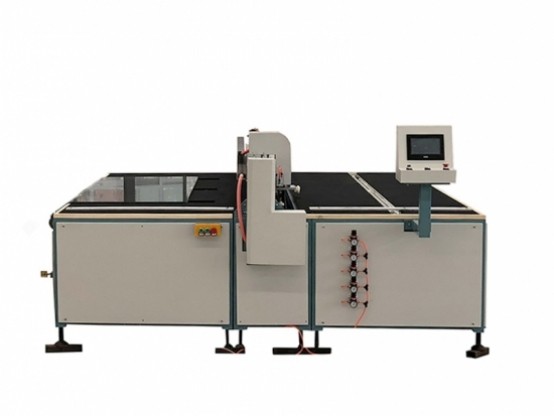

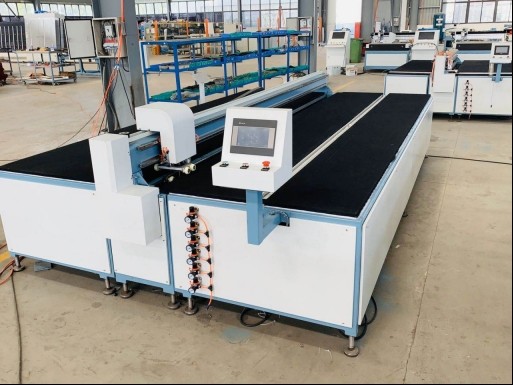

Laminated glass cutting machine

Laminated glass cutting machine

Features:

1. The cutting positions of the upper and lower cutter heads are consistent

2. Upper cutter with broken wheel, automatically press the lower layer of glass;

3. When the next lever is broken, there is a pneumatic pressure to ensure the effect of breaking

4. Heating and breaking are full auto.

Cutting precision：≤±1mm

Diagonal accuracy：≤±2mm/m

Max. Cutting size ：2500×2000mm/3770*2550mm（special size can be customized)

Min. Cutting size：100*100mm

Cutting glass thickness：2+2----10+10mm

Cutting efficiency：1sheet/2—4min

Cutter life：30,000m--50,000m

Equipment frame structure: GB thick wall rectangular pipe welding

Straight guideway: Taiwan silver straight square guideway

Motor synchronous wheel and belt: Babel, Italy

Pneumatic components: China

Motor: China Sutai 130 step motor

Driver: DELTA

PLC: DELTA

Touch screen: DELTA

Platform board: original imported E0 grade high density board from Taiwan

Felt: original imported felt from Taiwan

Fan: 4KW 2 sets made in China

Steel plate: 1. 2 mm thickness of outer shell

Heating tube: light wave infrared
