Glass cutting machine

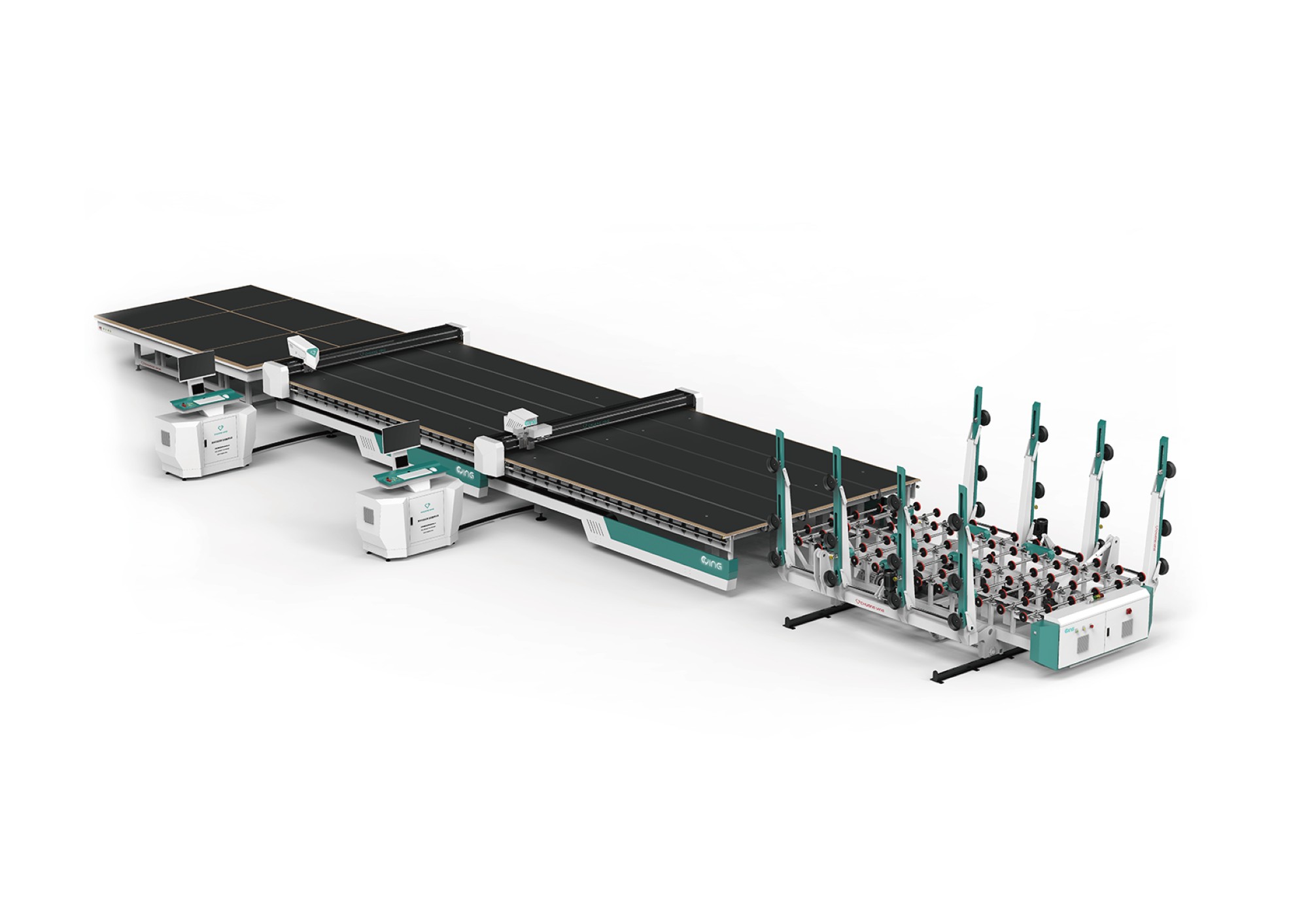

CNC-4228 automatic glass cutting line
A. Full automatic glass loading machine
Technical Parameters:
| Equipment dimensions | 4000*3500mm | Glass turn-over arm | Turn over |
| Maximum loading glass size | 4200*2800mm flat glass | Loading glass work station | station |
| Glass thickness | 3-19mm | Turn-over arm | one side turn over has four arms |
Maximum loading glass weight | 1000kg | Number of single arm suction cups | 3pcs |
| Picking up cycle | ≤ 60sec/sheet | Power supply | 380V/50HZ |
| Maximum glass suction depth | 700mm | Equipment power | 4.5KW |
| Vacuum pressure | -90~0Kpa | Compressed air | 0.5-0.8Mpa（Provided by the user） |
B. CNC 4228 Automatic Glass Cutting Machine (Dual Driver)
Equipment dimensions | 5000*3500 mm | Equipment weight | 3T |
Maximum flat glass size | 4200*2800 mm flat glass | Workbench height | 900mm±10mm |
Cutting glass thickness | 3-19 mm flat glass | Oil supply method | Pneumatic automatic oil filling |
| Cutting speed | 0~180m/min(Adjustable) | Power supply | 380V/50HZ/3phase |
| Straight line's accuracy | ≤±0.2mm/m | Equipment power | 5.5kw |
| Diagonal line’s accuracy | ≤±0.25mm/m | Compressed air | 0.6Mpa |
